The two reaction diagrams here represent the same reaction.

Single phase submersible starter connection. In chemistry a reaction coordinate 1 is an abstract one dimensional coordinate which represents progress along a reaction pathway. The diagram below is called a reaction coordinate diagram. A according to the lock and key model the shape of an enzymes active site is a perfect fit for the substrate.

Diagram of a catalytic reaction showing the energy niveau depending on the reaction coordinate. In an energy diagram the vertical axis represents the overall energy of the reactants while the horizontal axis is the reaction coordinate tracing from left to right the progress of the reaction from starting compounds to final products. Ron rusay a reaction coordinate energy diagram thermodynamic quantities.

The fully filled in reaction coordinate diagram is displayed below. Struggling to understand catalysts or reaction coordinate diagrams or maybe trying to determine a reactions rate law from its mechanism. A catalyst can have a profound inuence lowering the energy of activation and altering the mechanism.

One without a catalyst and one with a catalyst. Sketch a single reaction coordinate diagram for the reaction pathways catalyzed by catalysts a and b with clear labels provided for the reactant state energy and the two transition state energies. You may recall from general chemistry that it is often convenient to describe chemical reactions with energy diagrams.

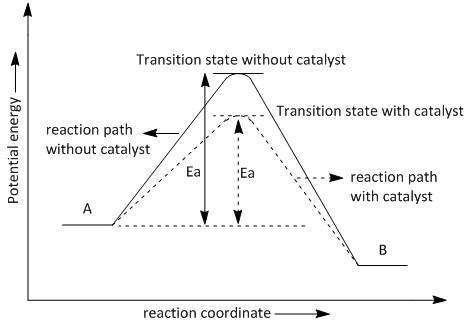

It shows how the energy of the system changes during a chemical reaction. The arrow marked in the question represents the activation energy which is the energy barrier that must be overcome in order for the reactants to form products. This potential energy diagram shows the effect of a catalyst on the activation energy.

This is an exothermic reactionheat is given off and should be favorable from an energy standpoint. Geometry and steric effects impact the reaction rate. Identify which diagram suggests the presence of a catalyst and determine the activation energy for the catalyzed reaction.

Energy diagram for a two step reaction mechanism complete energy diagram for two step reaction a two step reaction mechanism the transition states are located at energy maxima. The presence of nitric oxide no influences the rate of decomposition of ozone. This ensures that the metals in the catalyst are fully active even before the automobile exhaust is hot enough.

Each step has its own delta h and answer the activation energy would be lower. Solution a catalyst does not affect the energy of reactant or product so those aspects of the diagrams can be ignored. For a catalysed reaction the activation energy is lower.

Your answer should mention boltzmann energy distributions. The new diagram now looks like the one shown below. D provide a physical explanation why the rate constant has an exponential dependence on temperature hint.

The reactive intermediate b is located at an energy minimum.
