This might seem intimidating but it does not have to be.
Allen bradley e1 plus overload wiring diagram. 2 wire cable runs from the light to the first switch and then 3 wire is run between all the switches. How 4 way switch function. Variety of 3 way switch wiring diagram pdf.

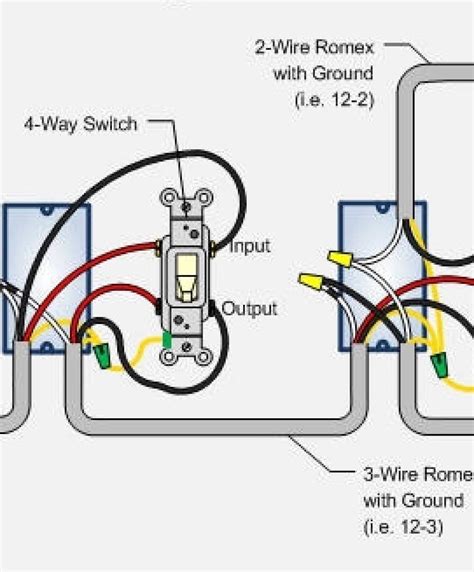

Wiring a 3 way light switch is certainly more complicated than that of the more common single pole switch but you can figure it out if you follow our 3 way switch wiring diagram. In this diagram the electrical source is at the first switch and the light is located at the end of the circuit. A wiring diagram is a streamlined traditional photographic depiction of an electric circuit.
4 way switch wiring need two 3 way switches one at each end and then as many 4 way switches as you want in between. Youll be capable to learn specifically if the projects should be finished that makes it easier for you to properly manage your time and effort. Wiring a 3 way light switch.
Wiring diagrams for 3 way switches. The power source is coming to light switch first. 4 way switch wiring need two 3 way switches one at each end and then as many 4 way switches as you want in between.
3 way switch wiring diagram. The electricity source and light. Furthermore wiring diagram gives you the time frame during which the assignments are to be finished.
The black line wire connects to the common terminal of the first 3 way switch. 3 way switch diagram 2 above shows the electricity source starting at the fixture. Take a closer look at a 3 way switch wiring diagram.
The electricity source and light fixture are connected to the same switch. The power source is coming to light fitting first. With a pair of 3 way switches either can make or break the connection that completes the circuit to the light.
It shows the components of the circuit as simplified forms and the power and also signal links in between the gadgets. One 4 way switch. 2 wire cable runs from the light to the first switch and then 3 wire is run between all the switches.
Wiring diagram 3 way switch with light at the end. In the 1st diagram below a 2 wire nm cable supplies power from the panel to the first switch box. Diagram 1 above shows the electricity source starting at the left 3 way switch.
3 way light switch wiring diagram pdf wiring diagram 3 way switch wiring diagram pdf. Three wire cable runs between the switches and 2 wire cable runs to the light. Traveler wires are interchangeable.
The white wire of the cable going to the switch is attached to the black line in the fixture box using a wire nut. The diagrams for 3 way switch wiring we broke down into the following sections see below. The black and red wires between sw1 and sw2 are connected to the traveler terminals.
Pick the diagram that is most like the scenario you are in and see if you can wire your switch.
